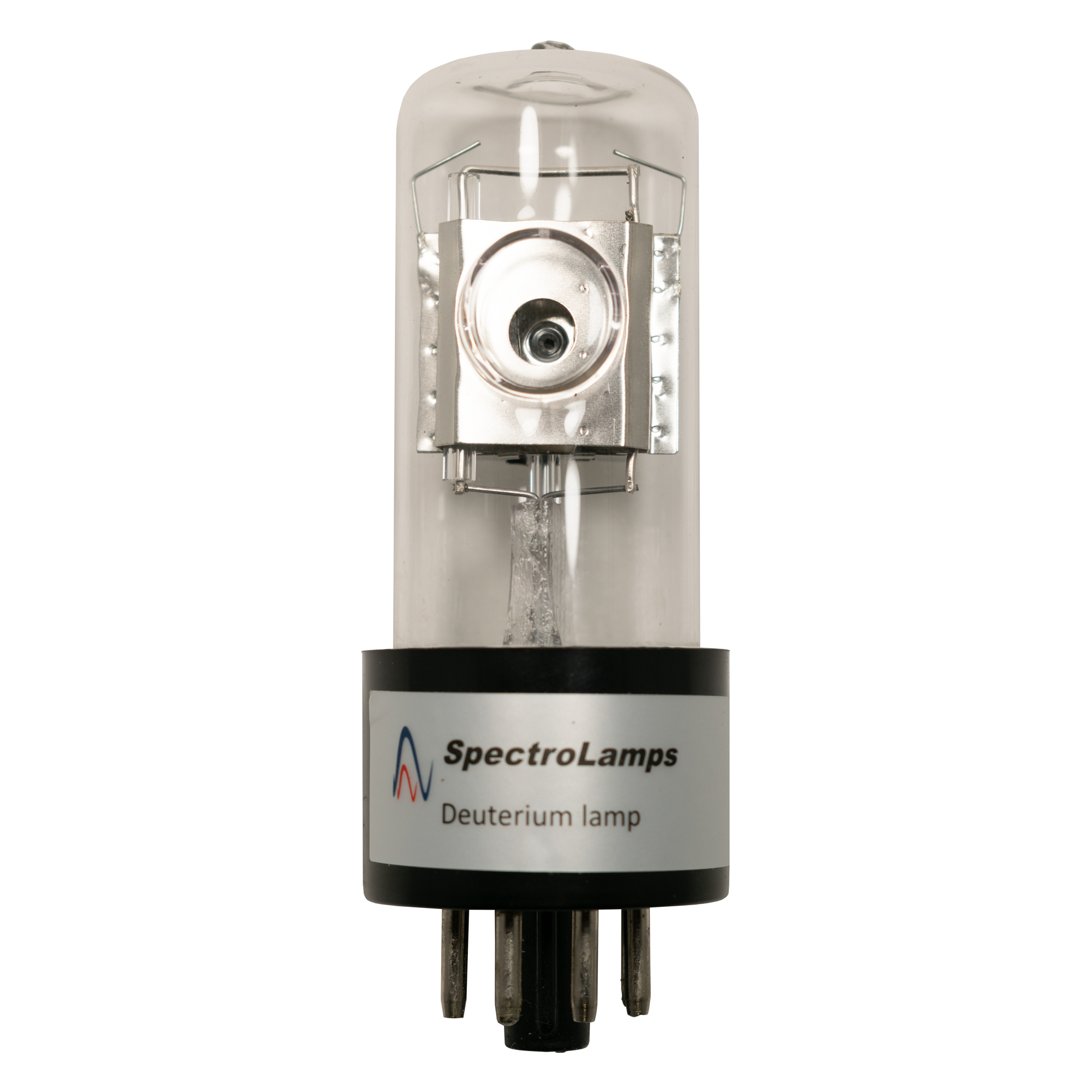

D003 – Deuterium Lamp (D2) - Jasco - Shimadzu

Part No: D003

Instrument Manufacturer: Beijing Raleigh Analytical Inst. Co., Jasco, Micronal, Shimadzu

Specifications:

• Heater voltage: 2.5 V
• Ignition voltage: >350 V
• Operating voltage: 65-90 Vdc
• Operating current: 300 mAdc
• Envelope diameter: 28.5 +/- 1.0 mm
• Light aperture: 1.0 mm
• Spectral distribution: 180-400 nm
• Connector: 8 pin base
• Note: pre-aligned octal base

OEM No: 062-65055-05, 200-75503-01

Compatibility: Beijing Raleigh Analytical Inst. Co.: UV-1100, UV-1200, UV-1300, UV-1400, UV-9100, Jasco: MD 2010,  MD 4010, V-530, V-550, V-560, V-630, V-630 Bio, V-650, V-650 PC & IRM type, V-660, V-670, 7100, 7850, Micronal: B582, Shimadzu: AA-625, AA-630, AA-640, AA-660, AA-670, AA-670G, AA-680U, AA-6200, AA-6300, AA-6500, AA-6701, AA-6800, BioSpec 1601, CS-920, CS-930, CS-9000, CS-9301, D300L, MPS 2000, MultiSpec 1501, UV 106A, UV 120, UV 120-1, UV 120-2, UV 140, UV 140-2, UV 150, UV 150-2, UV 160, UV 160A, UV 163, UV 180, UV 190, UV 200, UV 202, UV 210, UV 210A, UV 240, UV 250, UV 260, UV 265, UV 350, UV 360, UV 365, UV 370, UV 625, UV 1200, UV 1201, UV 1201 PC, UV 1202, UV 1240, UV 1501, UV 1600, UV 1601 PC, UV 1603, UV 1650, UV 1700, UV 1800, UV 2100, UV 2101, UV 2400, UV 2401 PC, UV 2450, UV 2500, UV 2501 PC, UV 2550, UV 2600, UV 2700, UV 3000, UV 3100, UV 3100 PC, UV 3101 PC, UV 3600, UV 3700, UV mini 1240, UV-Vis 160U, UV-Vis 190
