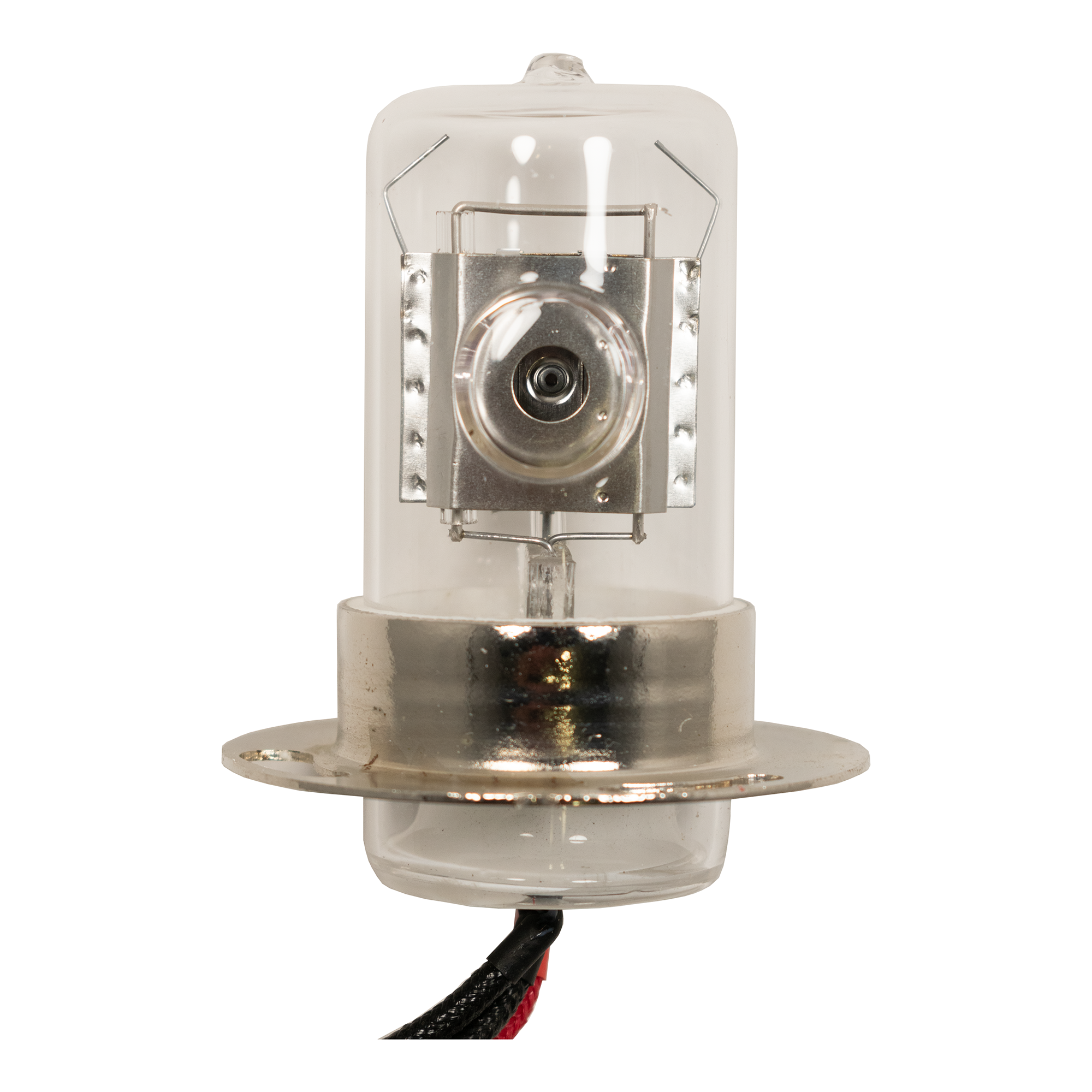

D005 – Deuterium Lamp (D2) - Hitachi - PerkinElmer

Part No: D005

Instrument Manufacturer: Hitachi, Merck, PerkinElmer

Specifications:

• Heater voltage: 10 V
• Ignition voltage: >350 V
• Operating voltage: 65-90 Vdc
• Operating current: 300 mAdc
• Envelope diameter: 28.5 +/- 1.0 mm
• Light aperture: 1.0 mm
• Spectral distribution: 180-400 nm

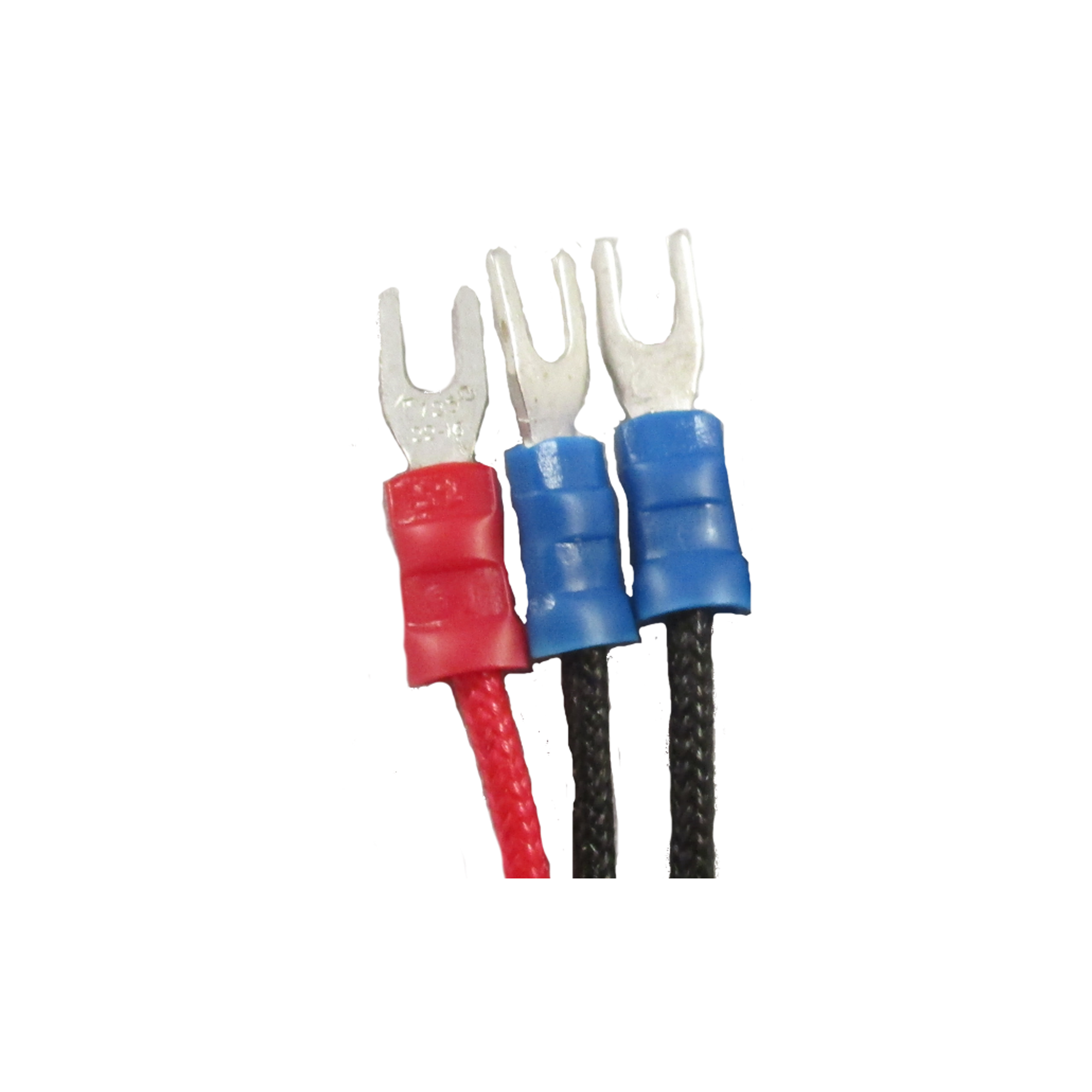

• Connector: spade terminals
• Note: pre-aligned

OEM No: 892-2550, 885-1000, PE Pt. 239-0354

Compatibility: Hitachi: 181, 200, 220, 220A, 300, 330, 330LC, 340, 150-20, 655A22, 5410 Chromaster, 5420 Chromaster, L-2000, L-2500, L-3000, L-3100, L-3200, L-4000, L-4200, L-4225, L-4250, L-4500, L-4520, L-4720, L-6000, L-7000, L-7400, L-7420, L-7450, L-7450A, L-7455 DAD Lachrom, Lachrom 655A, U-0080 D, U-1000, U-1100, U-1500, U-2000, U-2001, U-3010, U-3200, U-3210, U-3310, U-3410, U-3501, U-4000, U-4001, U-4010, U-4100, UL-1100, Merck / Hitachi: 655A/22, L3000, L4000, L4500, L4520, L4720, L7400, L7420, L7450, PerkinElmer / Hitachi: 124, 200, 220, 300, 320, 329, 330, 340, 556, 557, 220A, 330 LC, PerkinElmer: EZZ201
