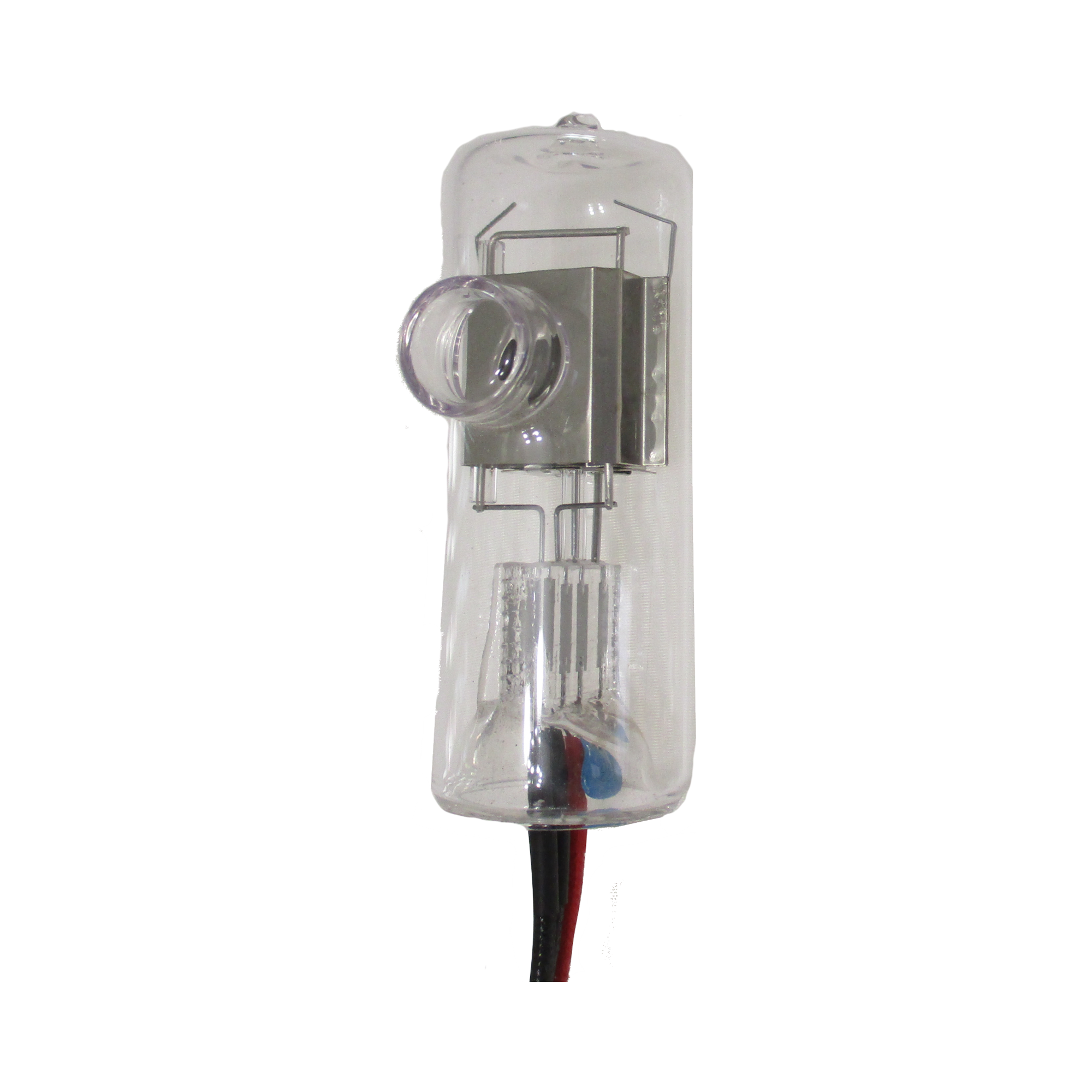

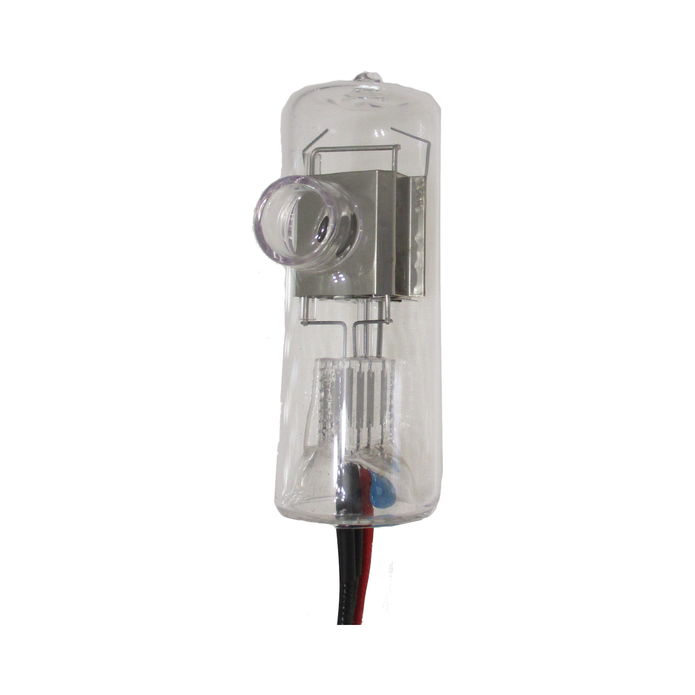

D007L – Deuterium Lamp (D2) - Cecil

Part No: D007L

Instrument Manufacturer: Cecil Instruments

Specifications:

• Heater voltage: 10 V
• Ignition voltage: >350 V
• Operating voltage: 65-90 Vdc
• Operating current: 300 mAdc
• Envelope diameter: 28.5 +/- 1.0 mm or 30 +/- 0.5 mm
• Light aperture: 1.0 mm
• Spectral distribution: 180-400 nm

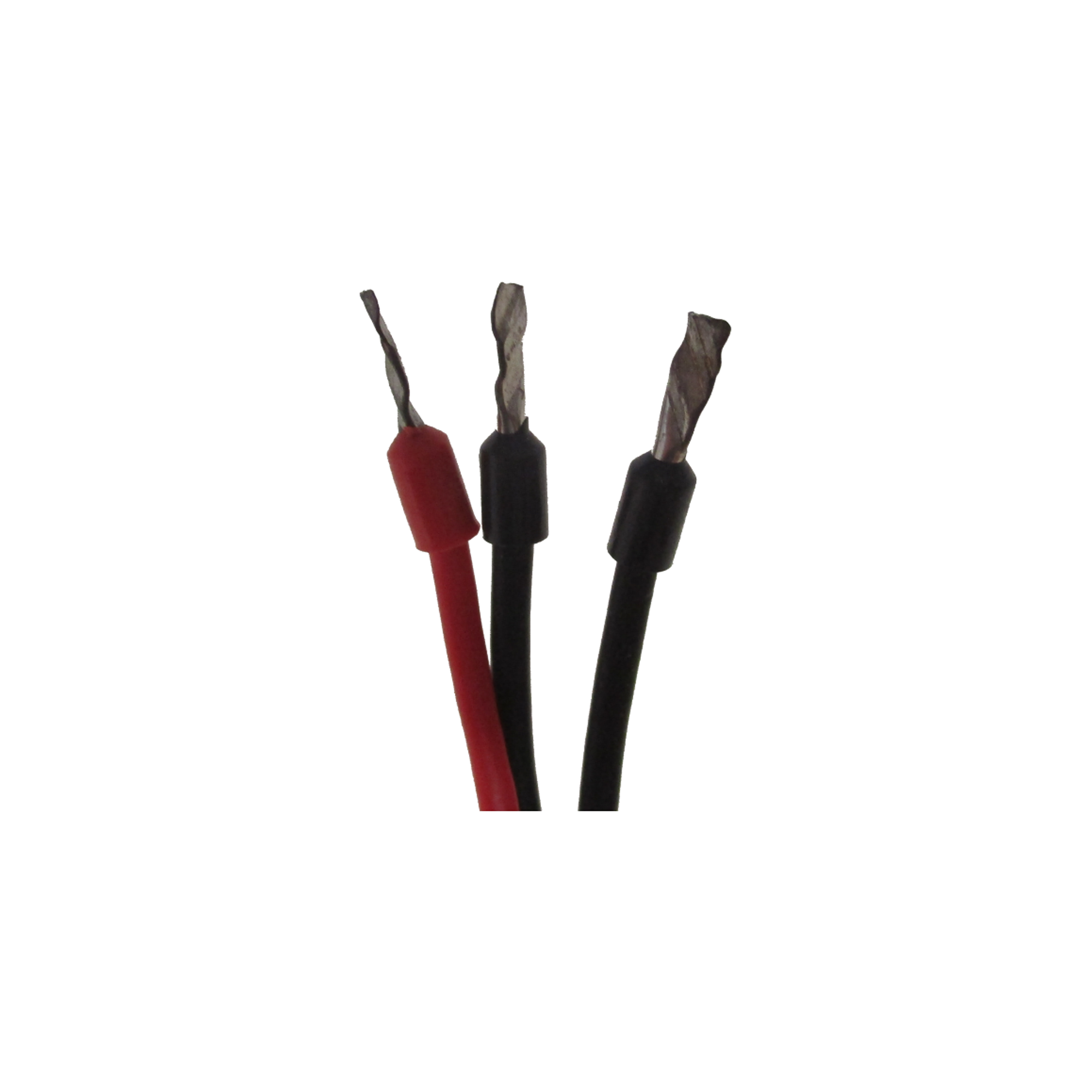

• Connector: tinned ends
• Note: bare lamp Long Nose version

OEM No: 2202-0142

Compatibility: Cecil Instruments: 1000 Series, 2000 Series, 3000 Series, 5000 Series, 6000 Series, 7000 Series, 8000 Series, 9000 Series, CD 4201, CD 4400, CD 6600S, CE 1010, CE 1020, CE 1070, CE 1200, CE 1220, CE 2021, CE 2202, CE 2272, CE 2292, CE 4200, CE 4400, CE 5501, CE 5502, CE 6000, CE 6602, CE 6603, CE 7200, CE 8020, CE 9020, CE 9050, CE 9080, CE 9090, Series 2 Models
