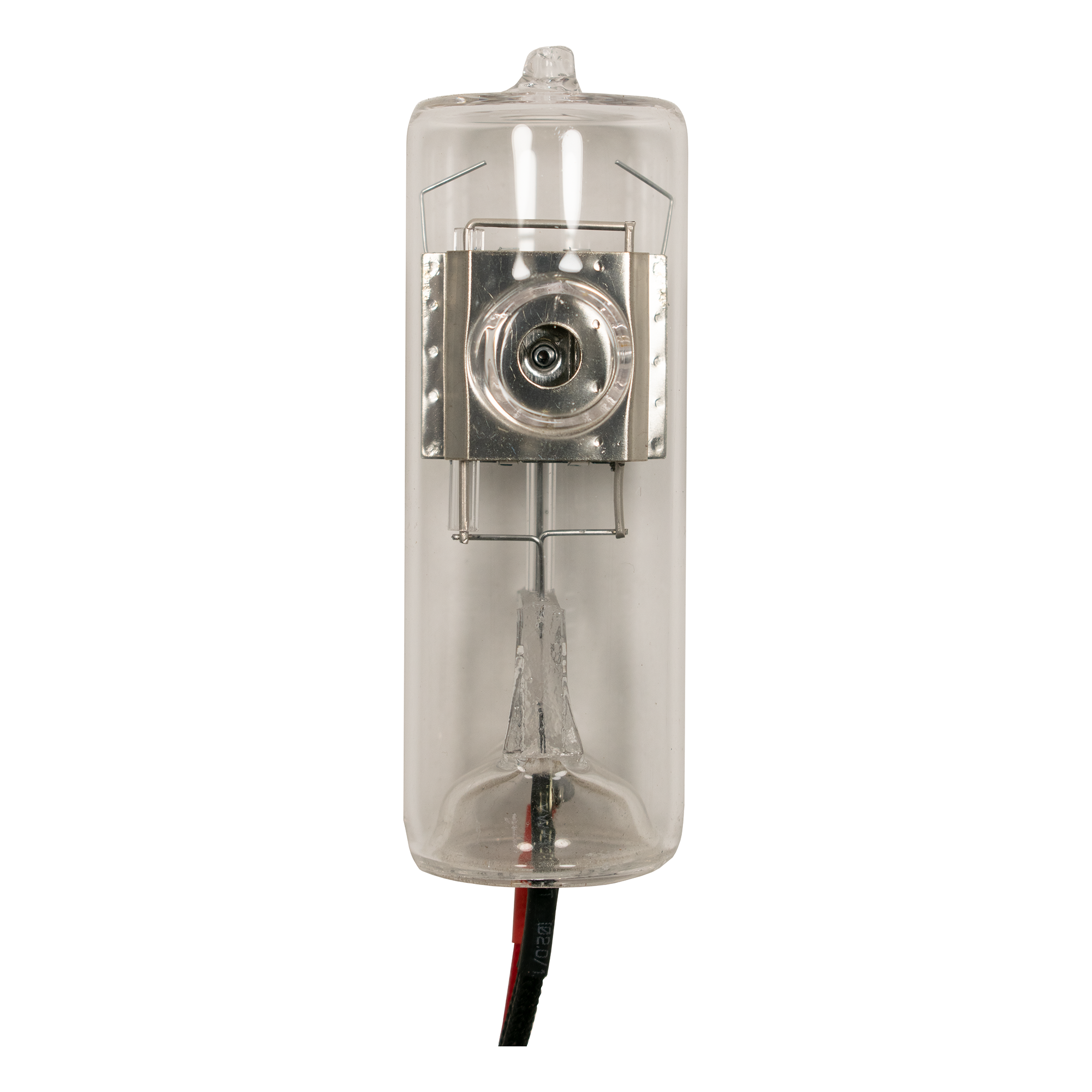

D012 Jasco Deuterium Lamp D2
  • D012 Jasco Deuterium Lamp D2

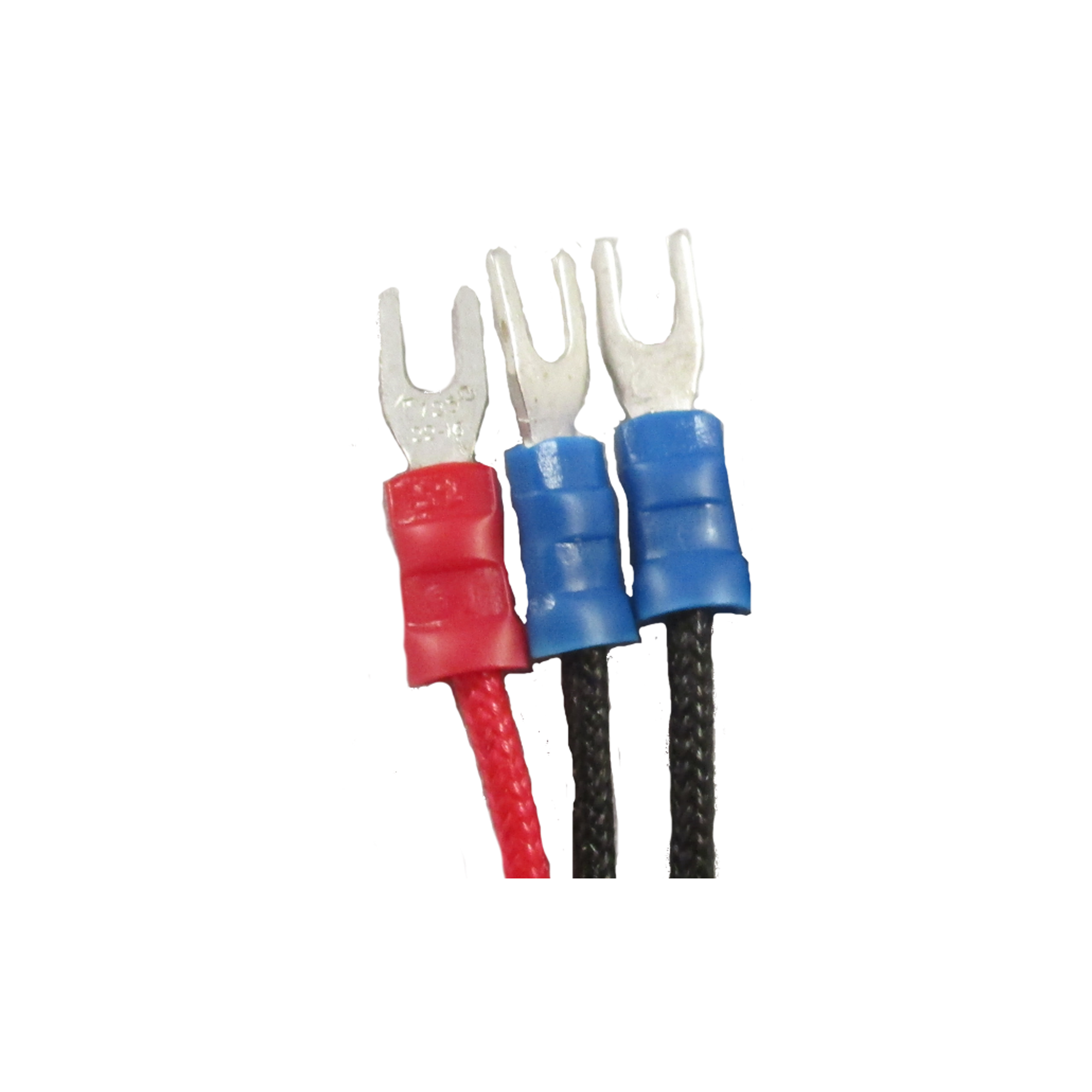

  • D012 Jasco Connector
D012 – Deuterium Lamp (D2) - Jasco

D012 – Deuterium Lamp (D2) - Jasco

$230.00
For international orders,
please add to cart and request a quote
Request a Quote

Part No: D012

Instrument Manufacturer: Altex, Beckman, Biotronic, Hitachi, Jasco

Specifications:

  • Heater voltage: 10 V
  • Ignition voltage: >350 V
  • Operating voltage: 65-90 Vdc
  • Operating current: 300 mAdc
  • Envelope diameter: 30 +/- 0.5 mm
  • Light aperture: 1.0 mm
  • Spectral distribution: 180-400 nm
  • Connector: spade terminals
  • Note: bare lamp

OEM No: Varian Pt. 56-100132-00

Compatibility: Altex: 155, Beckman: 155, Biotronic: BT3035, Hitachi: 101, 102, 111, Jasco: Uvidec 1, Uvidec 100, Uvidec 100 II, Uvidec 2, Uvidec 320, Uvidec 340, Uvidec 4, Uvidec 420, Uvidec 505, Uvidec 510, Uvidec 710, Varian: UV 634, UV 635

Description

Deuterium Lamps available for Spectrometers including background correction in AAS, UV-Vis, HPLC Instruments, Liquid Chromatography Detectors and other equipment designed for the need of the light source in the ultraviolet waveband. Deuterium Lamps are a broad band source of ultraviolet light, they are filled with deuterium gas and provide continuous UV spectrum from 170 - 400 nm. We provide D2 lamps pre-aligned as direct replacement for OEM or bare lamp versions for customers to secure to existing flange or securing fixture.
