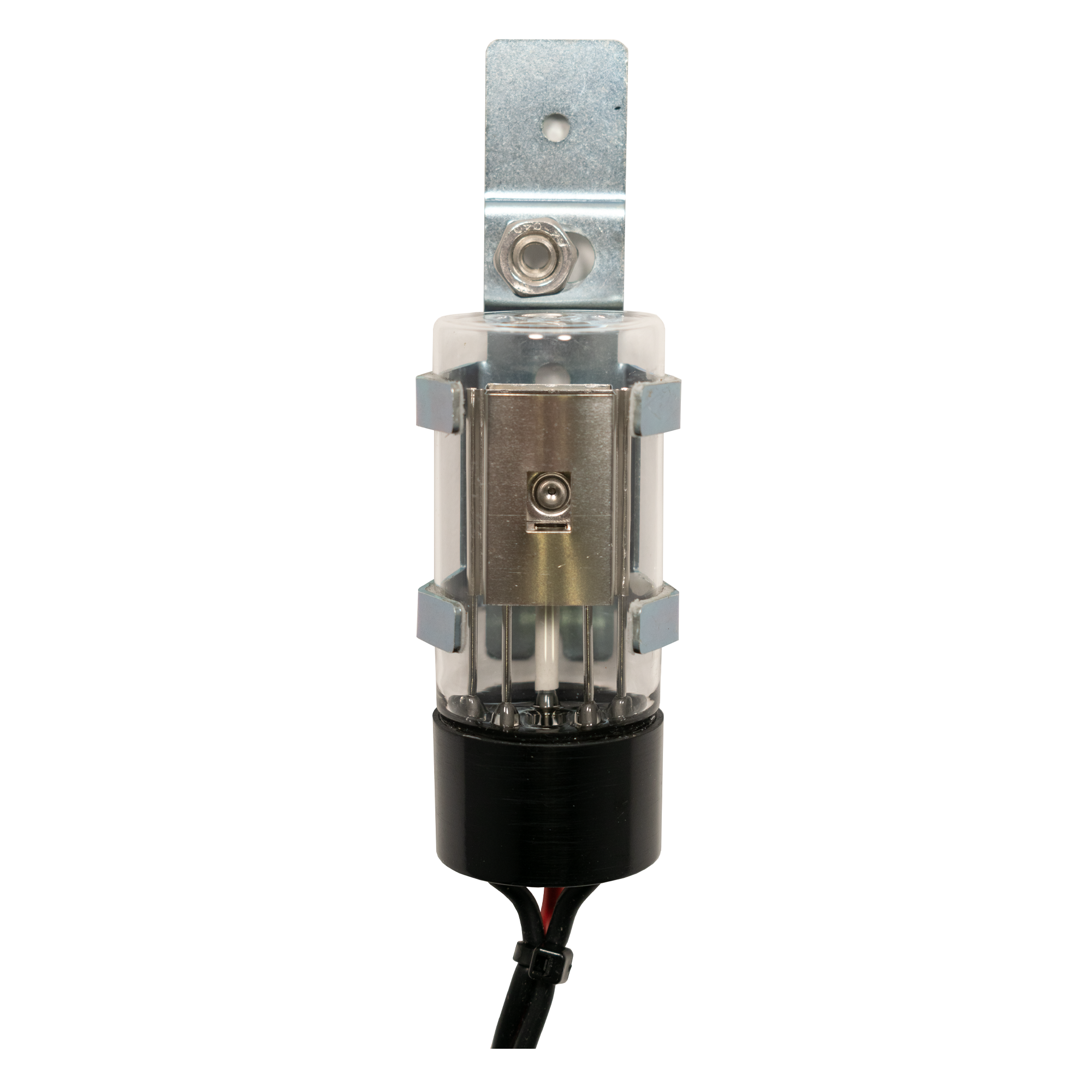

D022 – Deuterium Lamp (D2) - PerkinElmer

Part No: D022

Instrument Manufacturer: PerkinElmer

Specifications:

• Heater voltage: 10 V
• Ignition voltage: >350 V
• Operating voltage: 65-90 Vdc
• Operating current: 300 mAdc
• Envelope diameter: 28.5 +/- 1.0 mm
• Light aperture: 1.0 mm
• Spectral distribution: 180-400 nm

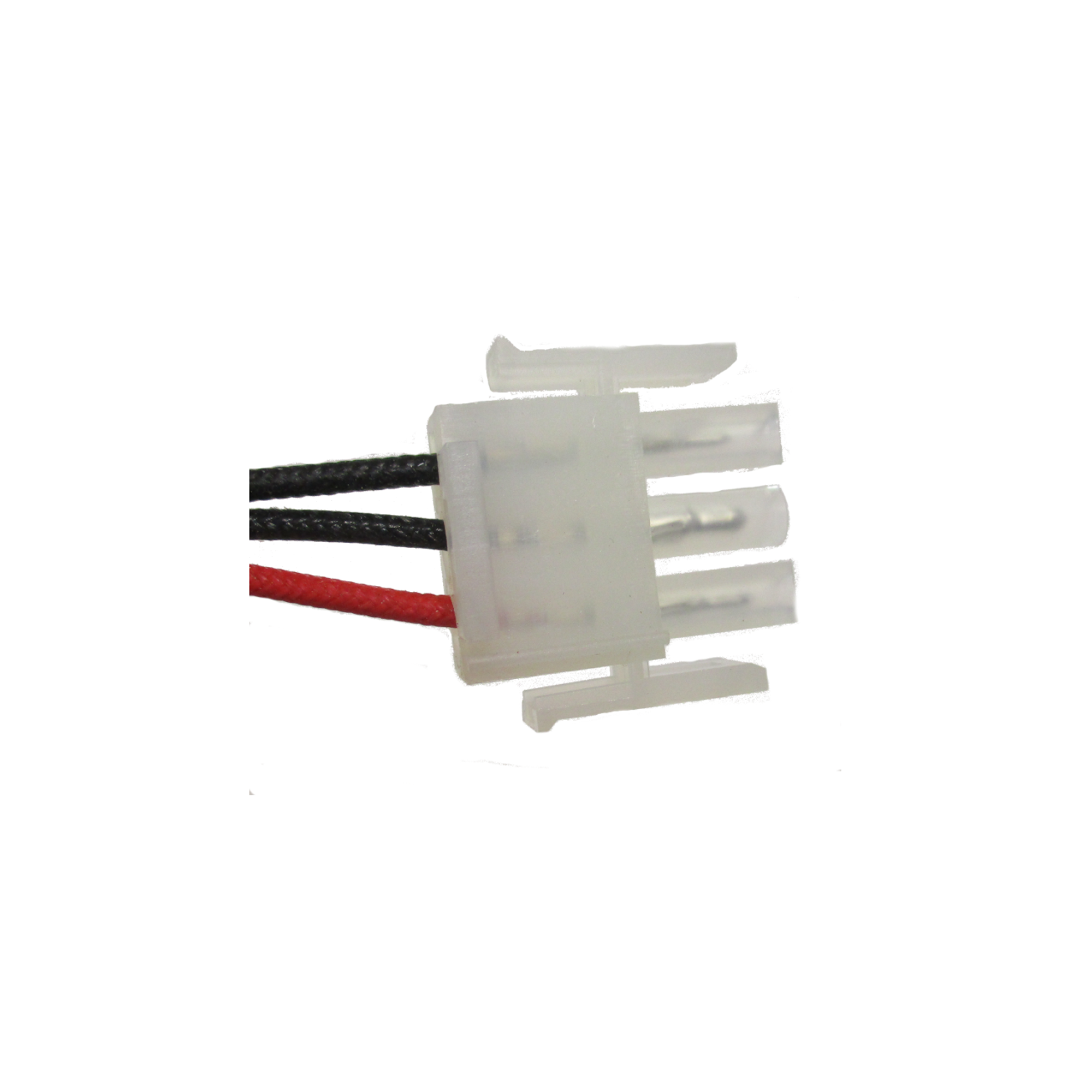

• Connector: 3 way housing
• Note: pre-aligned

OEM No: 80055323

Compatibility: PerkinElmer: 55, 550, 551, 552, 552A, 553, 559, 559A, Lambda 2, Lambda 2S, Lambda 4, Lambda 5, Lambda 7, Lambda 9, Lambda 10, Lambda 11, Lambda 12, Lambda 14, Lambda 14 P, Lambda 15, Lambda 16, Lambda 17, Lambda 18, Lambda 19, Lambda 20, Lambda 25, Lambda 35, Lambda 40, Lambda 40 P, Lambda 45, Lambda 650, Lambda 750, Lambda 800, Lambda 850, Lambda 900, Lambda 950, Lambda 1050, Lambda Bio 19, Lambda Bio 20, Lambda Bio 40, Lambda Bio 800, Lambda Bio 900, LC-480 Photo Diode Array, M55, M550, M551, M552 ( S/N > 2030 ), M552A, M553, M559, M559A
