Deuterium Lamp Power Supply
  • Deuterium Lamp Power Supply

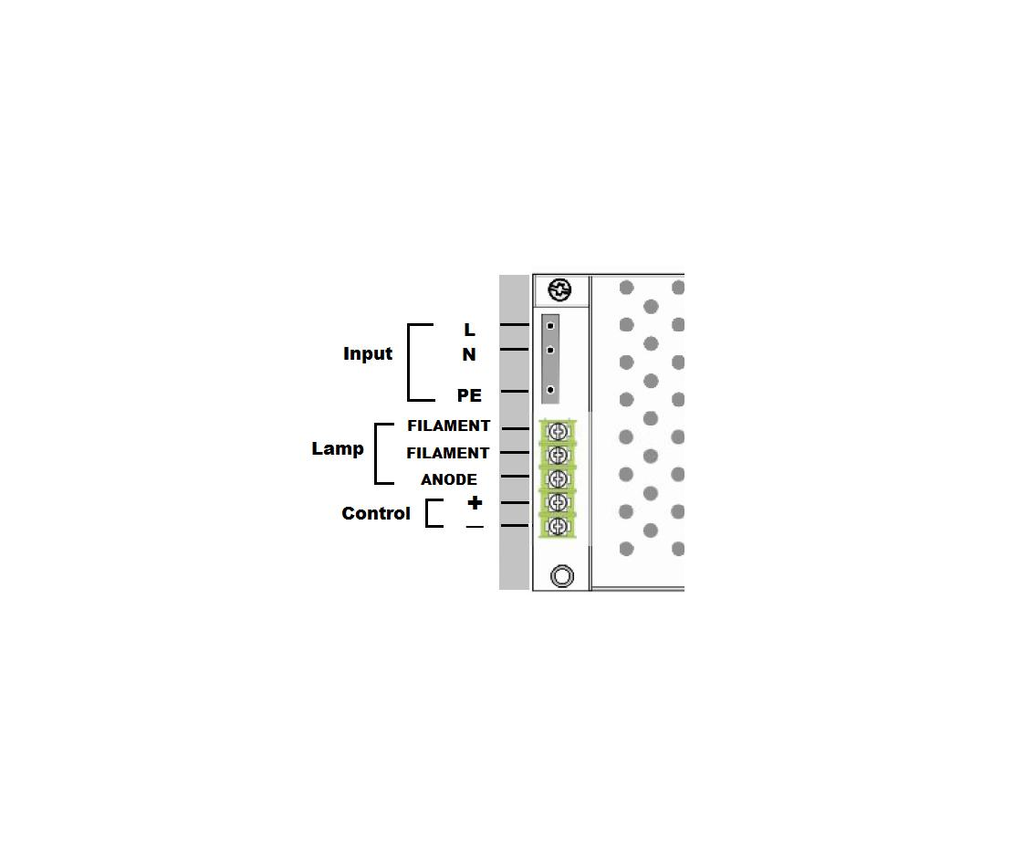

  • Deuterium Lamp Power Supply Diagram
D2PS10V – Deuterium Lamp Power Supply - 10 Volt

D2PS10V – Deuterium Lamp Power Supply - 10 Volt

$275.00
For international orders,
please add to cart and request a quote
Request a Quote

Part No: D2PS10V

Specifications:

Input Voltage:  AC 85 - 265V
Input Current:  Max. 0.5A
Filament voltage:
                              Preheating:  DC10V
                              Run:  DC 6-7V
Anode Voltage：
                              Preheating:  DC 125V
                              Run (Max):  DC 80V
Anode Current:  300mA
Constant current Accuracy:  0.05% (after start 10min)
Ignition Voltage： DC 400V
Dielectric strength： AC 1500V / 1min
Shutting Down Signal： 3 -12V / 1 mA
Operating Temperature: 0-40 deg C

Size： 130 x 100 x 40 mm

Handling Precautions:

High voltages are present. Caution is required to prevent electrical shock.

Note: this power supply must be used with a 10 Volt Deuterium Short Arc Lamp. Compatible with most 10 Volt D2 Lamps

Description

Deuterium Lamp Power Supply high frequency switch mode, set filament preheat, high voltage trigger and constant current control. Mains input voltage worldwide 85-265Vac, no switching required. Deuterium Lamp Power Supply will operate most 10 volt heater / filament lamps from all manufacturers including Heraeus, Hamamatsu and Photron.
