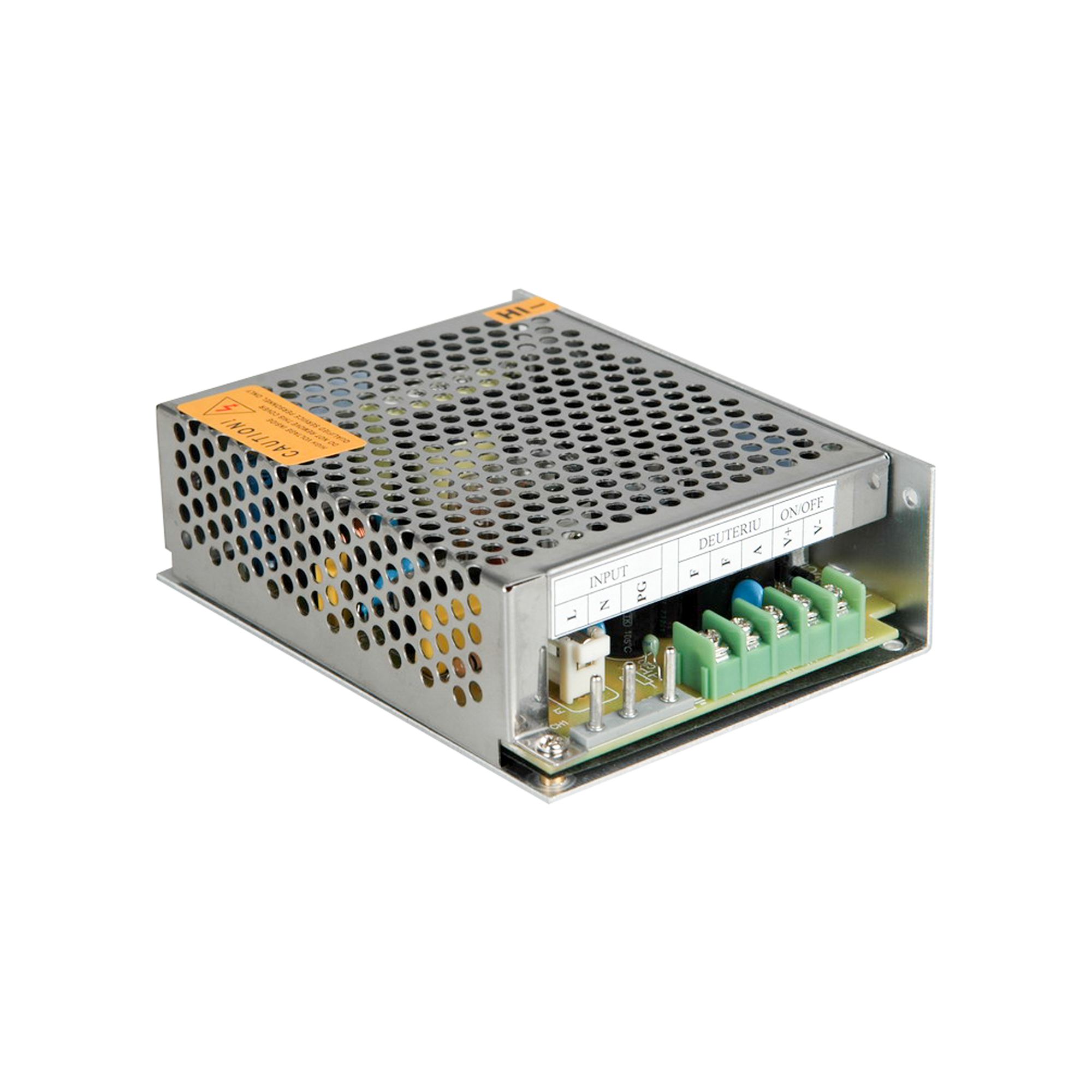

D2PS2.5V – Deuterium Lamp Power Supply - 2.5 Volt

Part No: D2PS2.5V

Specifications:

Input Voltage:  AC 85 - 265V
Input Current:  Max. 0.5A
Filament voltage:
                              Preheating:  DC 2.5V
                              Run:  0V
Anode Voltage：
                              Preheating:  DC 115V
                              Run (Max):  DC 80V
Anode Current:  300mA
Constant current Accuracy:  0.05% (after start 10min)
Ignition Voltage： DC 400V
Dielectric strength： AC 1500V / 1min
Shutting Down Signal： 3 -12V / 1 mA
Operating Temperature: 0-40 deg C

Size： 130 x 100 x 40 mm

Handling Precautions:

High voltages are present. Caution is required to prevent electrical shock.

Note: this power supply must be used with a 2.5 Volt Deuterium Short Arc Lamp. Compatible with most 2.5 Volt D2 Lamps
