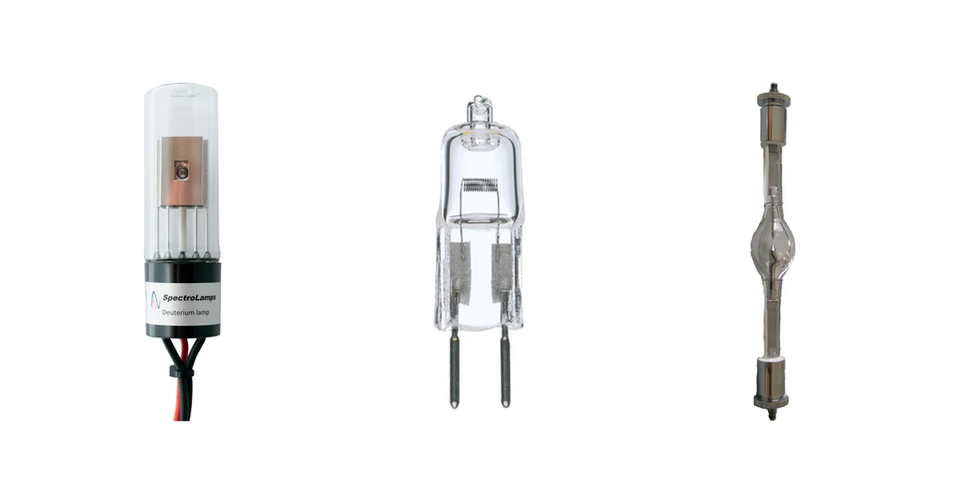

Comparison between Deuterium Lamp, Tungsten Lamp and Xenon Lamp

A comparison between Deuterium D2 Lamps, Tungsten Lamps (tungsten/halogen/visible) and Xenon lamps (short arc) — focusing on how they differ in operation, spectral output, typical uses and performance (especially in spectroscopy and analytical instruments).





 Light Generation & Operating Principle



 Deuterium (D2) Lamp

• A gas-discharge lamp that produces light by an arc through low-pressure deuterium gas.
• Designed specifically for continuous UV emission.
• Stable power is needed to maintain the discharge, anode current in UV- Vis applications to maximum 300mA, heater / filament voltages 2.5volt and 10volt D2 lamps available.

 Tungsten / Tungsten-Halogen / Visible Lamp

• A type of incandescent light source; it uses a tungsten filament, electric current heats the tungsten filament until it glows, producing light mainly via blackbody radiation.
• Inert gas and small amount of Halogen gas in the envelope helps redeposit evaporated tungsten, extending life and stability.
• Constant Current / Voltage DC power supplies may be used for high-stability Tungsten lamp needs, these provide regulated DC power, low ripple for scientific instruments or microscopy.
• Produces a smooth continuum spectrum in visible and near-IR.

 Xenon Lamp / Xenon Short Arc Lamp

• A high–pressure gas-discharge arc lamp with xenon gas. An electric arc between two tungsten electrodes within a quartz envelope filled with xenon gas.
• The lamp requires a DC power supply and an ignition device to start.
• Produces intense light across a very broad spectrum, approximating sunlight.
• Spectrum extends from UV into visible and near-IR, more so than D2 or tungsten alone.



 Spectral Output



Lamp Type	UV	Visible	Near-IR
D2 Lamp	✔️ Strong (≈190–370 nm)	Weak or negligible	✖️
Tungsten / Halogen	✖️ Very weak below ~320–350 nm	✔️ Strong	✔️ Good into NIR
Xenon Lamp	✔️ Moderate	✔️ Strong	✔️ into NIR

• Deuterium lamps are specialised for ultraviolet (UV) wavelengths — they produce a continuous UV spectrum that’s ideal for UV absorption measurements.
• Tungsten/halogen lamps output is brightest in visible and infrared regions but have very little usable UV output.
• Xenon lamps cover UV through across to visible to near-IR with a relatively flat continuum, making them versatile light source.



Typical Uses / Performance

 Deuterium Lamp

• Best for UV spectroscopy (e.g., UV-Vis spectrophotometers) because of its strong, stable UV output.
• Usually paired with a tungsten lamp in instruments to cover full UV-Vis range.

 Tungsten Lamp

• Standard visible to NIR source in many optical instruments.
• Good for general spectroscopy where UV output isn’t needed.
• Relatively inexpensive and long-lived compared with other discharge lamps.

 Xenon Lamp

• Used where broad, continuous intense spectrum output is required — e.g., fluorescence, some microscopy, or spectroscopy needing strong light across UV to IR.
• Less stable than D2 and tungsten for low-noise quantitative measurements and usually more expensive to replace.



Stability & Lifetime



Deuterium (D2) Lamps

• Provide a continuous and stable UV spectrum, but the arc discharge gives limited brightness and moderate lifetime (~1000-2000h typical).

• Tungsten (W) / Halogen Lamps

• Very stable thermal source with long operational life (often >2000 h).
• Output changes mainly with filament aging and temperature.

• Xenon (Xe) Lamps

• Higher brightness but typically less stable over time than D2 or tungsten — arc motion and electrode erosion can cause intensity fluctuations.
• Lifetimes vary but often around ~1000 h for short-arc types, with replacement costs higher.



Practical Considerations



Calibration & Noise:

• D2 lamps are preferred where low-noise, stable UV measurements are critical.
• Tungsten lamps are excellent for regular visible/NIR work.
• Xenon lamps offer broad spectrum intensity but require careful handling (e.g., stable power supplies and optical management) due to noise and cost.

Instrument Design:

• Instruments often combine D2 + tungsten to get continuous UV through visible coverage without gaps.
• Some advanced systems may use Xe lamps alone if broad range and high intensity is required



Summary

• D2 lamp: Best for UV (190–370 nm), continuous, stable for spectroscopy but limited beyond UV.
• Tungsten/halogen: Best for visible to NIR, produces continuum light, cost effective, good stability.
• Xenon lamp: Broadest range (UV–visible–NIR) and high intensity, but relatively less stable and more expensive.
