Introduction

An optogalvanic lamp is a specialised see through hollow cathode discharge lamp designed to utilise the optogalvanic effect — the change in electrical properties (current/voltage) of a gas discharge when resonant light interacts with atoms in the plasma. This effect enables precise detection of atomic transitions and is widely used for laser wavelength calibration, laser frequency stabilisation, and optogalvanic spectroscopy.

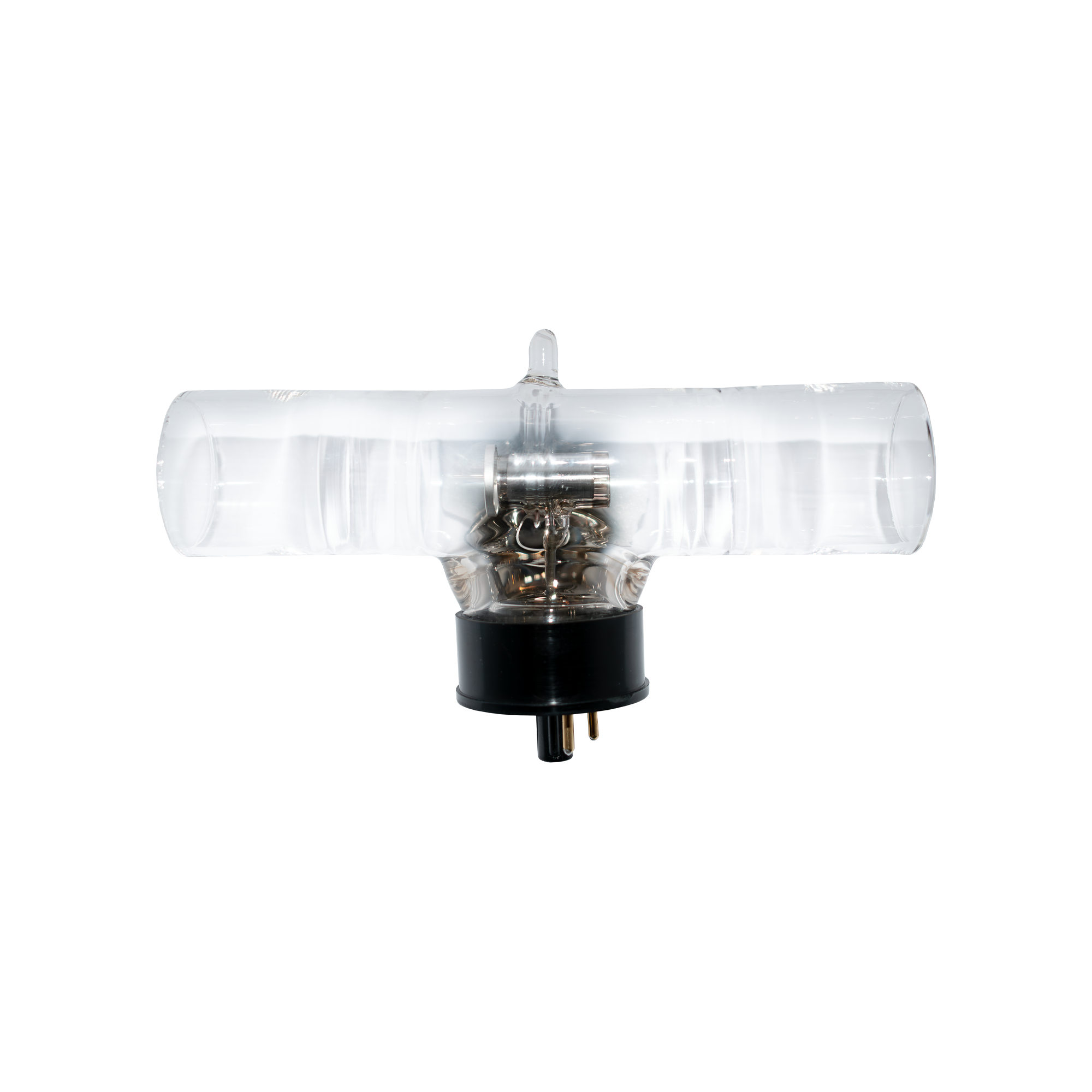

The lamp contains a see-through hollow cathode constructed from a high-purity cathode material (for the element of interest) with quartz windows for optical transmission. A suitable inert fill gas (e.g., Neon, Argon, Xenon) supports a stable low-pressure discharge.



Basic Principle

When a tunable laser beam is passed through the discharge of the hollow cathode lamp, atoms in the discharge can absorb photons if the laser frequency matches a resonant atomic transition of the cathode material. Absorption changes the population of certain atomic states, which modifies the ionization and recombination dynamics in the plasma. This results in a measurable change in the discharge current or voltage — the optogalvanic signal.

The magnitude of the optogalvanic signal peaks at resonance, allowing the laser wavelength to be accurately referenced to known atomic lines.



Instrumentation & Setup

Optogalvanic Lamp

  • Lamp Type: See-through hollow cathode lamp with quartz windows for optical transmission.
  • Cathode Material: Select based on the target wavelength/atomic transitions (e.g., Ca, Fe, Sr, Yb etc).
  • Filler Gas: Neon is common; Argon or Xenon may be used depending on spectral lines needed and discharge characteristics.
  • Power Supply: A hollow cathode lamp (HCL) power supply provides the precise stable and regulated electrical current and voltage required to operate the lamp. The supply offers adjustable current, a high starting voltage to initiate the discharge ensuring constant light output for accurate analysis.

Laser Source

  • Tunable Laser: Provides a narrow linewidth beam with the ability to change its emission wavelength.
  • Beam Delivery: Collimated and aligned to pass through the center bore of the lamp  cathode.

Detection Circuit

Two common approaches are:

  1. Direct Current/Voltage Monitoring:
    • Measure changes in discharge current or voltage across the lamp with a suitable ammeter/voltmeter or oscilloscope.
    • A ballast resistor and capacitor (RC) may be included to filter DC supply and allow AC variations (optogalvanic signal) to pass.
  1. Lock-In Amplification:
    • Modulate the laser intensity (e.g., with a chopper) to produce an AC signal at a known frequency.
    • Use a lock-in amplifier referenced to the modulation frequency to extract small optogalvanic signals from noise.

Experimental Procedure

Operating the lamp

  1. Initialise the lamp by powering it with the recommended current (5-15 mA depending on element) and ensuring stable discharge.
  2. Adjust ballast/impedance elements to deliver stable current without thermal or electrical drift.
  3. Confirm discharge stability before laser interaction.

Optical Alignment

  1. Align the laser beam through the quartz windows into the discharge region through the cathode.
  2. Ensure the beam intersects the plasma where neutral atoms and ions are abundant.
  3. Carefully align to maximise overlap without hitting electrode surfaces, minimising photoelectric noise.

Signal Detection

  1. Scan the laser wavelength across the expected atomic transitions.
  2. Monitor the discharge current/voltage for deviations from baseline.
  3. An optogalvanic peak corresponds to resonance absorption, indicating the laser is tuned to an atomic transition.
  4. Record the signal vs wavelength profile for calibration or analysis.

Data Interpretation and Calibration

  • Peak Identification: The optogalvanic response peaks correspond to known atomic resonances for the chosen cathode material.
  • By mapping these peaks to wavelengths, one constructs a calibration curve that references the laser’s tuning mechanism.
  • With known reference lines (e.g., from documented optogalvanic spectra), one can achieve high precision calibration for spectroscopic applications.

Applications

  • Laser Wavelength Calibration: Align laser tuning to absolute atomic transition frequencies with high precision.
  • Laser Frequency Stabilisation: Use feedback from the optogalvanic signal to lock the laser frequency.
  • Optogalvanic Spectroscopy: Investigate atomic/molecular transitions via their influence on the discharge signal.Metrology & Standards: Provide calibrated references for spectrometers.

Practical Considerations

  • Selecting Cathode Materials: Choose an element with suitable atomic transitions covering your target wavelength range.
  • Selecting filler gas: Choose required inert lamp gas fill: Neon, Argon.
  • Lamp Life & Current: Lamp lifetime and signal strength depend on operating current; balance between signal amplitude and lamp life.
  • Noise Reduction: Employ modulation and lock-in detection to suppress noise and enhance sensitivity.
  • Safety: Be cautious with high voltages and laser radiation; use appropriate eyewear and proceed with caution.

Conclusion

An optogalvanic lamp is a reliable and effective device for precise optical calibration and spectroscopic measurements. By leveraging the optogalvanic effect (the interaction of resonant light with a gas discharge), scientists can link electrical signals directly to atomic transitions, enabling accurate tuning and stabilisation of lasers and other optical sources.
