D007L Cecil Deuterium Lamp D2

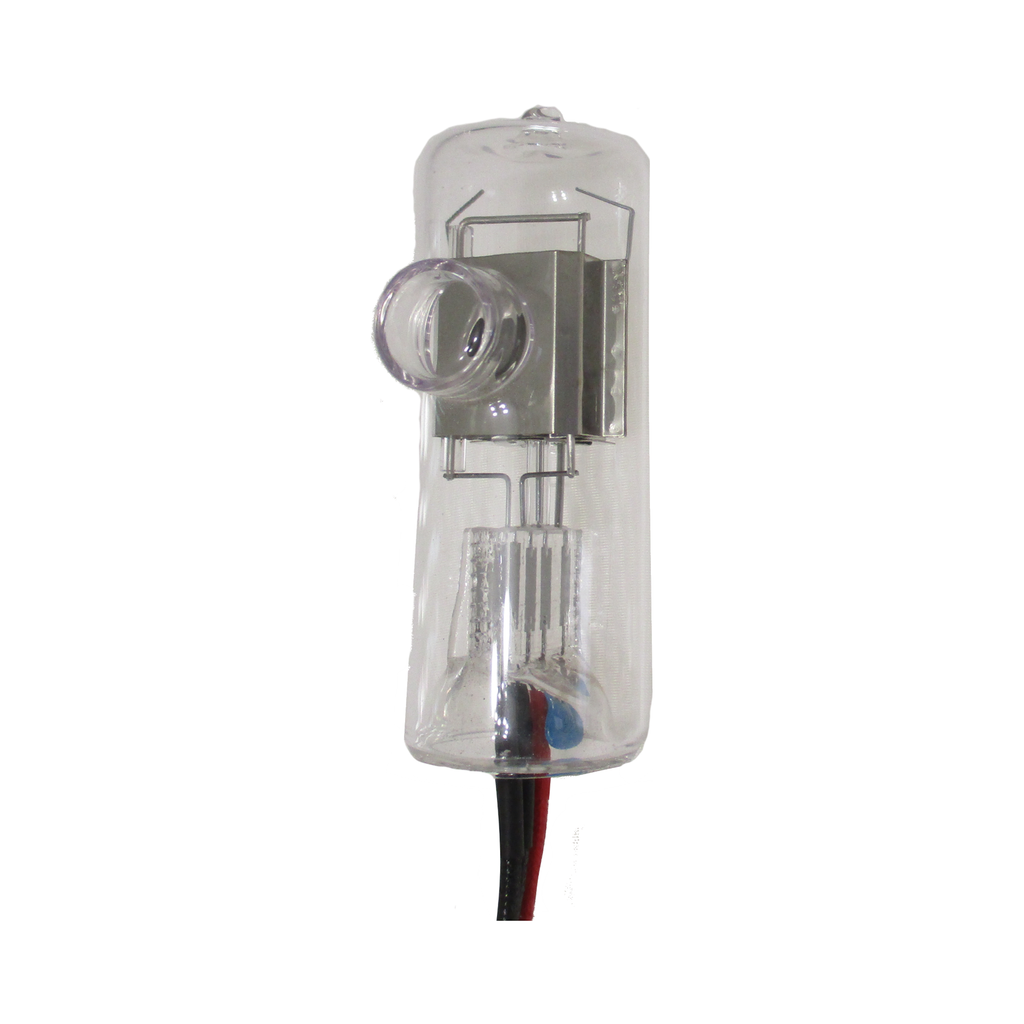

  • D007L Cecil Deuterium Lamp D2

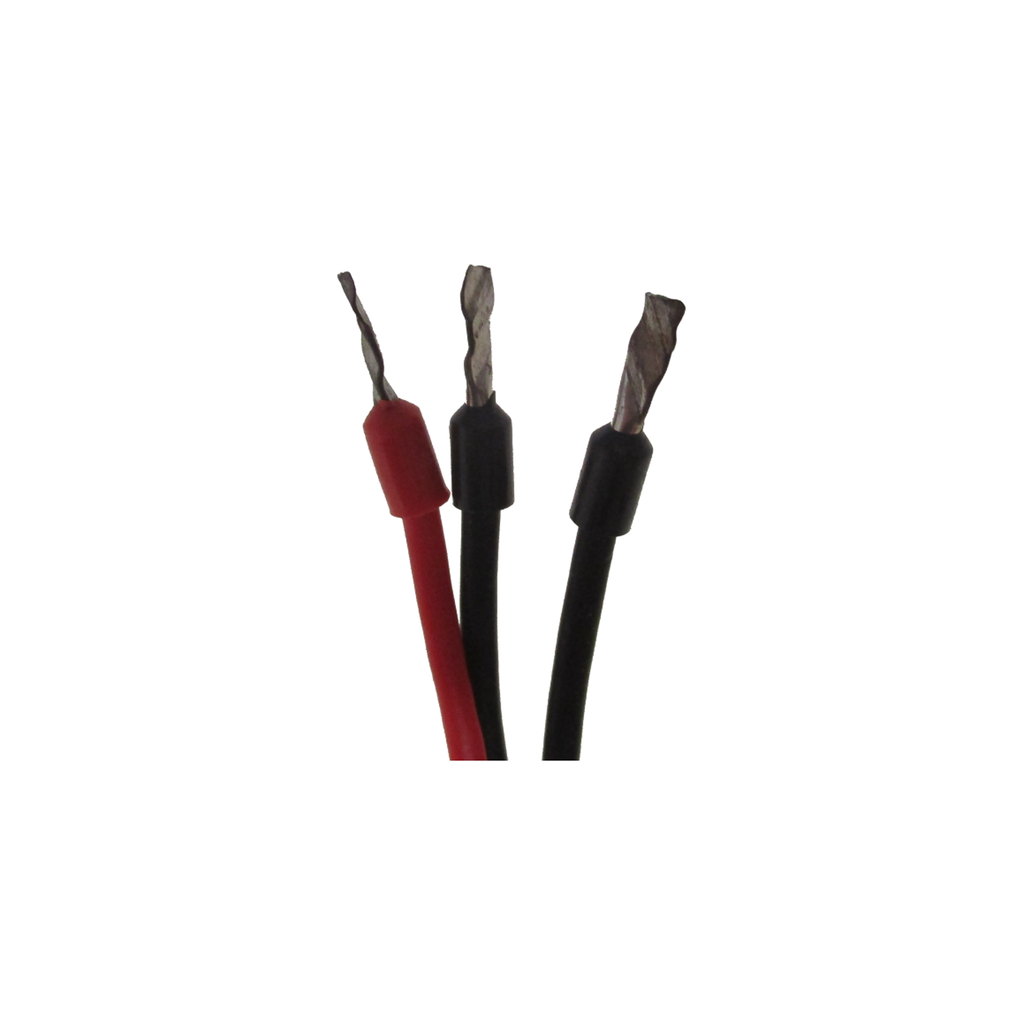

  • D007L Cecil Connector
D007L – Deuterium Lamp (D2) - Cecil

D007L – Deuterium Lamp (D2) - Cecil

$280.00
For international orders,
please add to cart and request a quote
Request a Quote

Part No: D007L

Instrument Manufacturer: Cecil Instruments

Specifications:

  • Heater voltage: 10 V
  • Ignition voltage: >350 V
  • Operating voltage: 65-90 Vdc
  • Operating current: 300 mAdc
  • Envelope diameter: 28.5 +/- 1.0 mm or 30 +/- 0.5 mm
  • Light aperture: 1.0 mm
  • Spectral distribution: 180-400 nm
  • Connector: tinned ends
  • Note: bare lamp Long Nose version

OEM No: 2202-0142

Compatibility: Cecil Instruments: 1000 Series, 2000 Series, 3000 Series, 5000 Series, 6000 Series, 7000 Series, 8000 Series, 9000 Series, CD 4201, CD 4400, CD 6600S, CE 1010, CE 1020, CE 1070, CE 1200, CE 1220, CE 2021, CE 2202, CE 2272, CE 2292, CE 4200, CE 4400, CE 5501, CE 5502, CE 6000, CE 6602, CE 6603, CE 7200, CE 8020, CE 9020, CE 9050, CE 9080, CE 9090, Series 2 Models

Description

Deuterium Lamps available for Spectrometers including background correction in AAS, UV-Vis, HPLC Instruments, Liquid Chromatography Detectors and other equipment designed for the need of the light source in the ultraviolet waveband. Deuterium Lamps are a broad band source of ultraviolet light, they are filled with deuterium gas and provide continuous UV spectrum from 170 - 400 nm. We provide D2 lamps pre-aligned as direct replacement for OEM or bare lamp versions for customers to secure to existing flange or securing fixture.
