D011 Beckman Deuterium Lamp D2

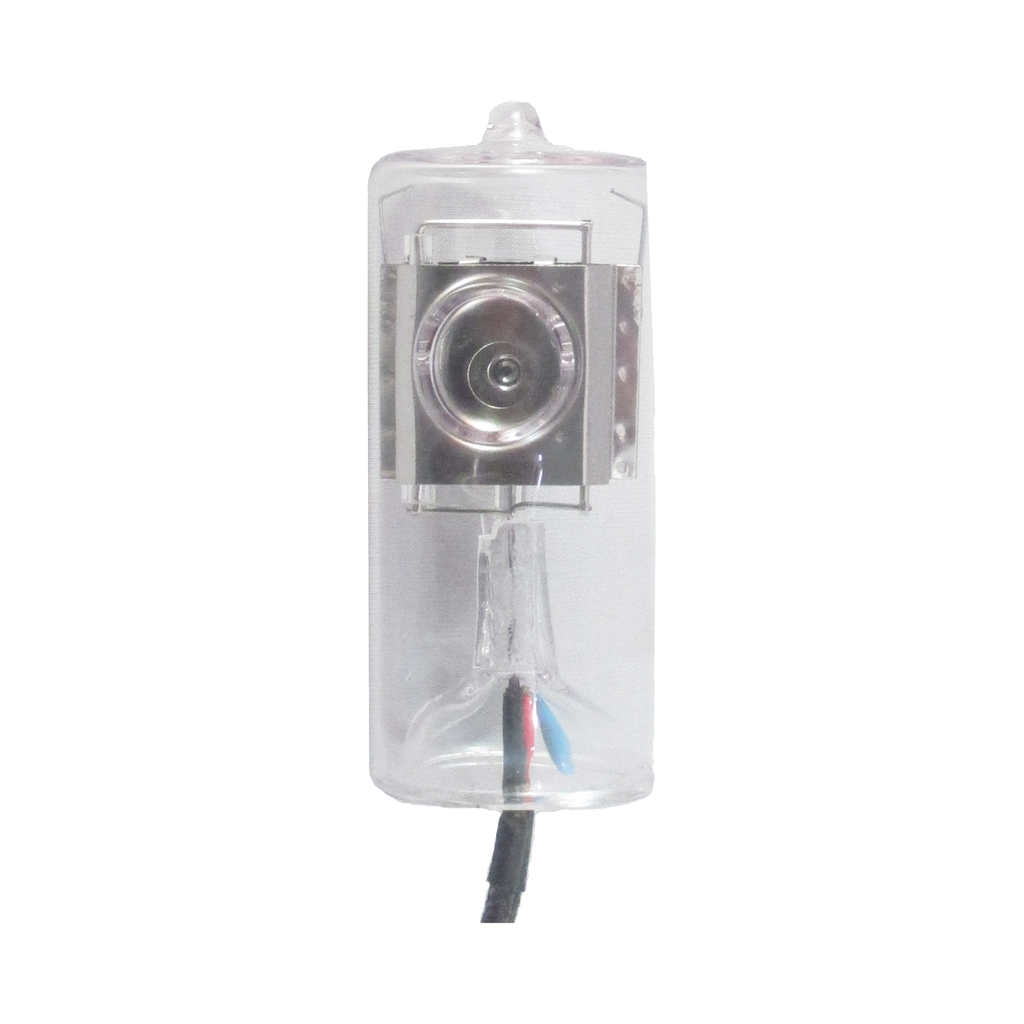

  • D011 Beckman Deuterium Lamp D2

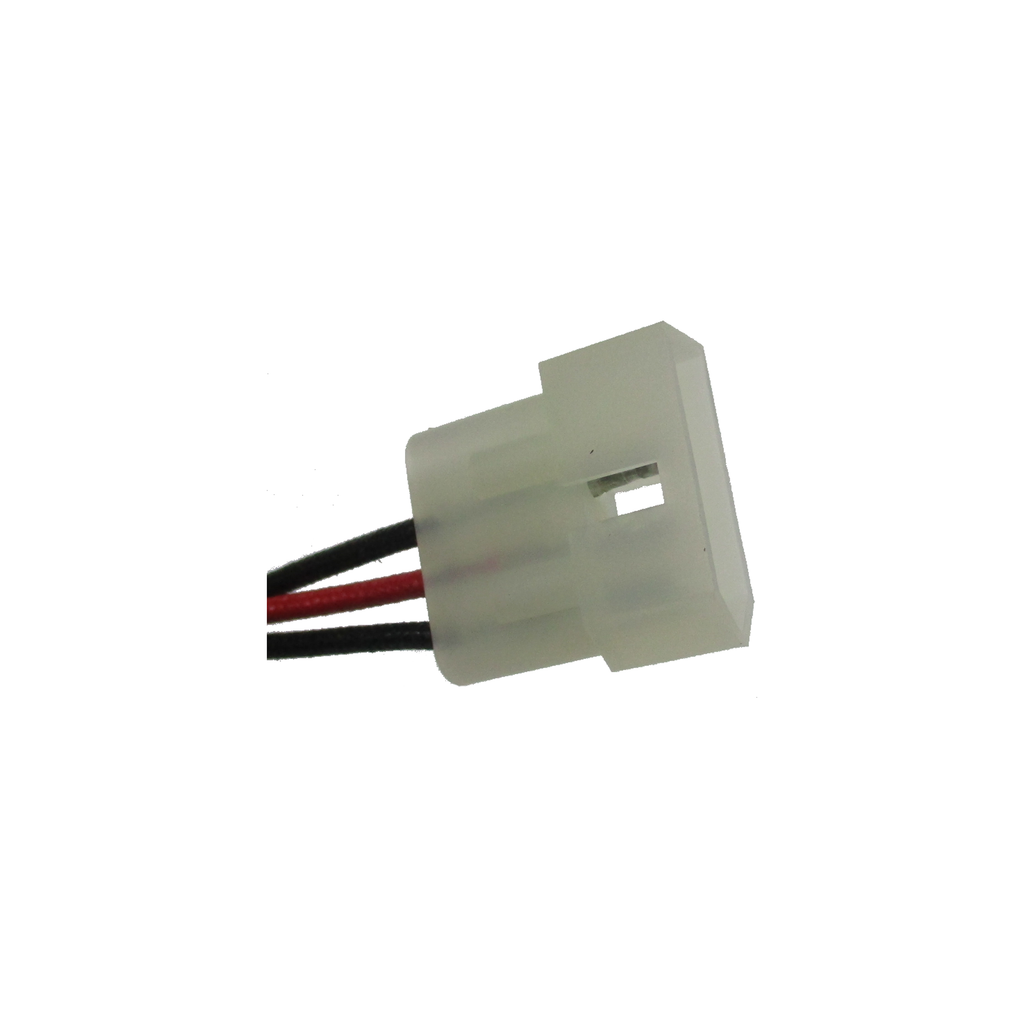

  • D011 Beckman Connector
D011 – Deuterium Lamp (D2) - Beckman

D011 – Deuterium Lamp (D2) - Beckman

$230.00
For international orders,
please add to cart and request a quote
Request a Quote

Part No: D011

Instrument Manufacturer: Altex, Beckman

Specifications:

  • Heater voltage: 10 V
  • Ignition voltage: >350 V
  • Operating voltage: 65-90 Vdc
  • Operating current: 300 mAdc
  • Envelope diameter: 28.5 +/- 1.0 mm
  • Light aperture: 1.0 mm
  • Spectral distribution: 180-400 nm
  • Connector: 4 way housing
  • Note: bare lamp

OEM No: N/A

Compatibility: Altex: 164, 165, 167, Beckman: 20, 24, 25, 26, 34, 35, 36, 164, 165, 167, 5200, Acta, DU-6, DU-7, DU-20, DU-30, DU-37, DU-40, DU-50, System Gold

Description

Deuterium Lamps available for Spectrometers including background correction in AAS, UV-Vis, HPLC Instruments, Liquid Chromatography Detectors and other equipment designed for the need of the light source in the ultraviolet waveband. Deuterium Lamps are a broad band source of ultraviolet light, they are filled with deuterium gas and provide continuous UV spectrum from 170 - 400 nm. We provide D2 lamps pre-aligned as direct replacement for OEM or bare lamp versions for customers to secure to existing flange or securing fixture.
