Spectral Lamp with S8AES pin base
  • Spectral Lamp with S8AES pin base
SP-He – Spectral Lamp – Helium - Pin Base

SP-He – Spectral Lamp – Helium - Pin Base

$110.00
For international orders,
please add to cart and request a quote
Request a Quote

Part No: SP-He

Element: Helium

Base Type: Pin Base - S8AES

Specifications:

  • L (total length): 155-160
  • d (diameter): 28.5
  • h (height of light center): 75-90
  • V (voltage): 80
  • A (current): 1.0

Wavelength - main spectral lines: 588 nm, 668 nm, 707 nm

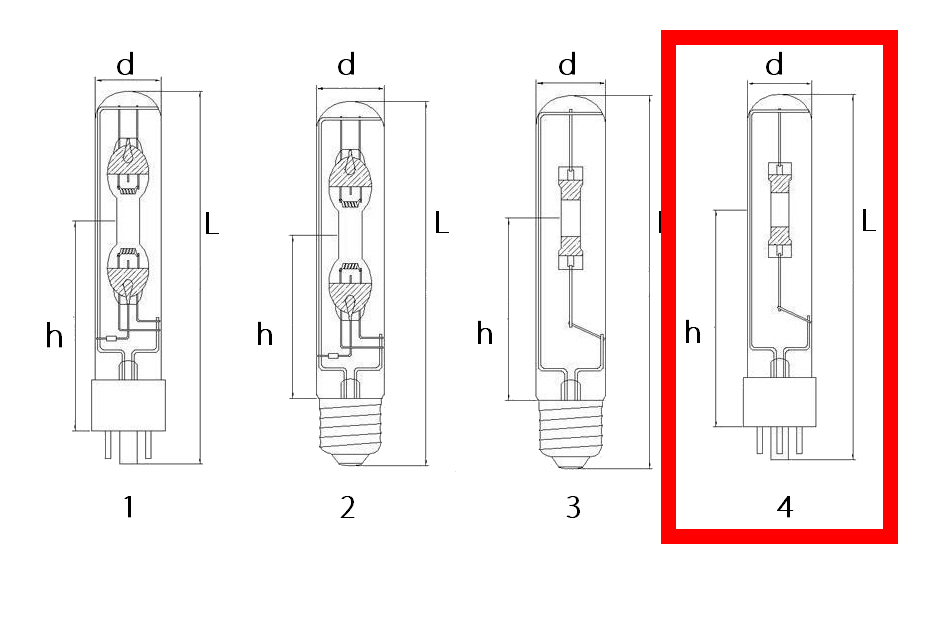

Spectral Diagram 4 pin base S8AES

Description

Spectral Lamps are stable, high quality sources of discrete spectral lines of various gases and metal vapors with high brightness and spectral purity.
Atomic Spectra are produced by creating an arc between electrodes and provide stable results by virtue of the high purity and constant output.

Spectral Lamps may be used in spectroscopic applications to set a reference point for the spectrometer. Using a spectral lamp as a calibration lamp to test the detector and track any measurement discrepancies from the detector.

Base type: screw base E27 and S8AES base. Lifetime of spectral lamps is 100 hours.
