Spectral Lamp with E27 screw base
  • Spectral Lamp with E27 screw base
SP-Hg-E27 – Spectral Lamp – Mercury - Screw Base

SP-Hg-E27 – Spectral Lamp – Mercury - Screw Base

$115.00
For international orders,
please add to cart and request a quote
Request a Quote

Part No: SP-Hg-E27

Element: Mercury

Base Type: Screw Base - E27

Specifications:

  • L (total length): 155-160
  • d (diameter): 28.5
  • h (height of light center): 75-90
  • V (voltage): 15
  • A (current): 1.2

Wavelength - main spectral lines: 313 nm, 334 nm, 365 nm, 404 nm, 407 nm, 435 nm, 436 nm, 546 nm, 577 nm, 579 nm

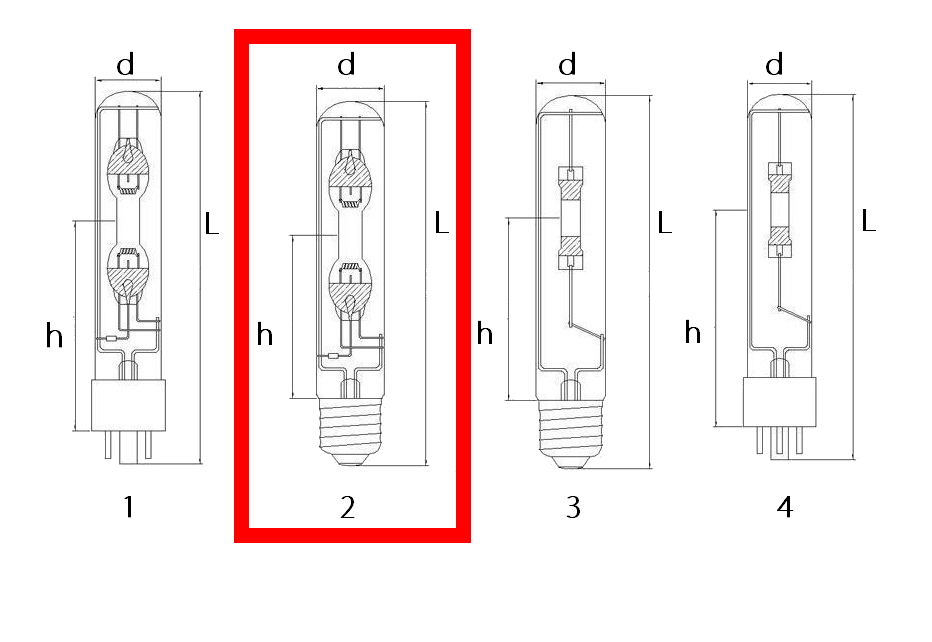

Spectral Diagram 2 screw base E27

Description

Spectral Lamps are stable, high quality sources of discrete spectral lines of various gases and metal vapors with high brightness and spectral purity.
Atomic Spectra are produced by creating an arc between electrodes and provide stable results by virtue of the high purity and constant output.

Spectral Lamps may be used in spectroscopic applications to set a reference point for the spectrometer. Using a spectral lamp as a calibration lamp to test the detector and track any measurement discrepancies from the detector.

Base type: screw base E27 and S8AES base. Lifetime of spectral lamps is 100 hours.
