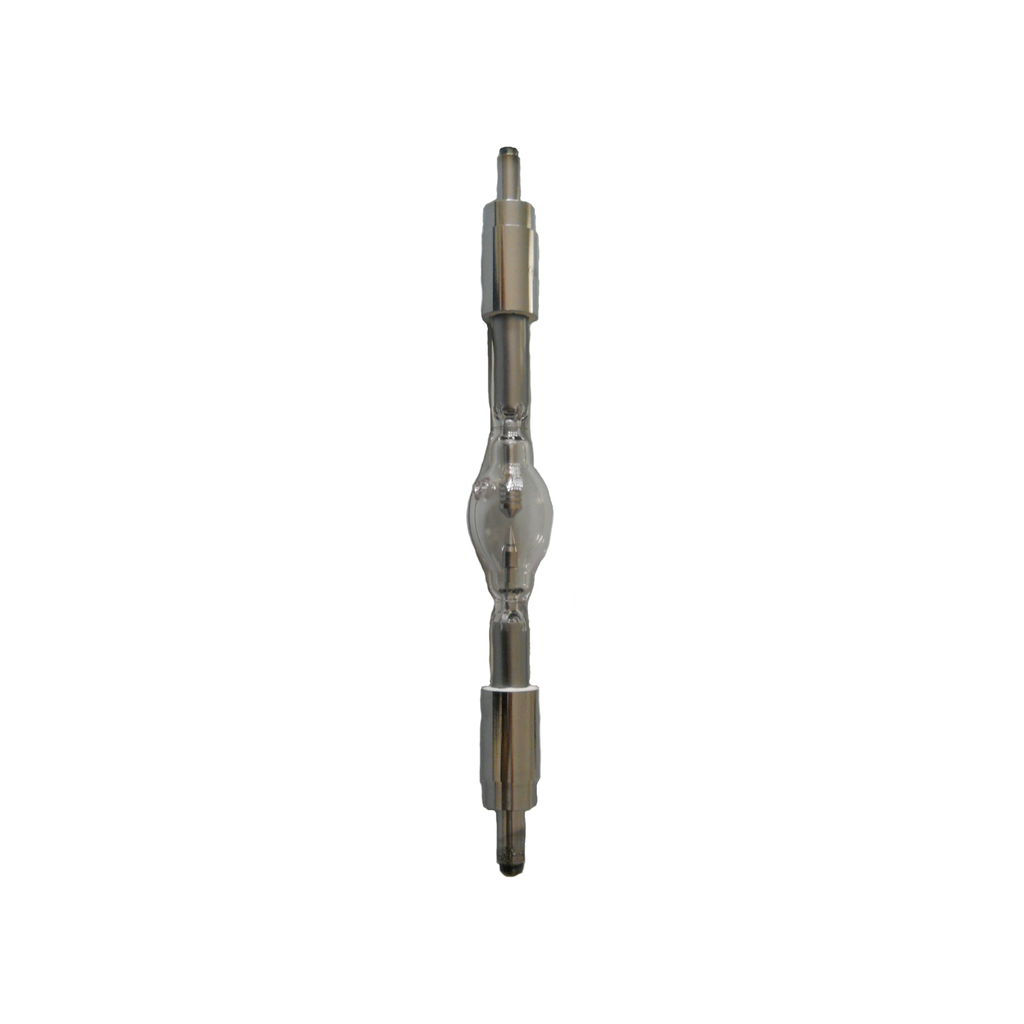

450 watt Xenon Short Arc Lamp

XHA450W OFR – Xenon Short Arc Lamp

$235.00
For international orders,
please add to cart and request a quote

Specifications:

  • Wattage: 450
  • Operating Current (A): 25
  • Operating Voltage (V): 18
  • Luminous Flux (lm): 13000
  • Average Lifetime (h): 1000
  • Wind Cooling Speed (M/sec): 5
  • Polar Distance (mm): 2.7

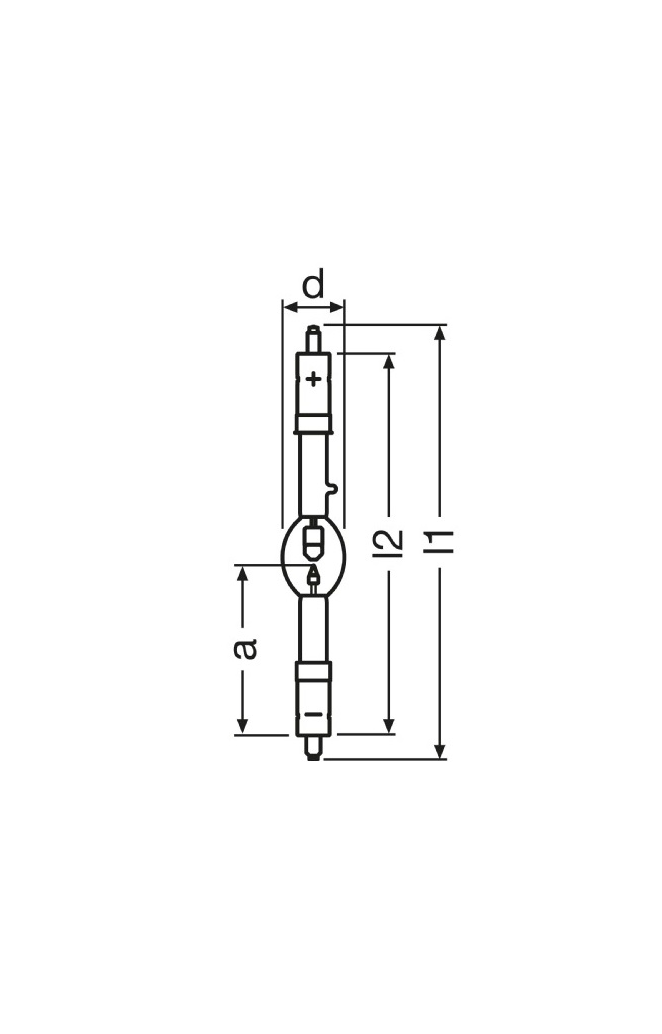

  • Diameter d (mm): 29
  • Overall Length l1 (mm): 260
  • Mounting Length l2 (mm): 212
  • Height of Light Center a (mm): 95.5
  • Lamp Base anode: SFa20-8
  • Lamp Base cathode: SFa20-10
  • Burning Position degrees: +/- 15
  • Equivalent to: XBO450
  • Material: Ozone Free Quartz

Equivalent to OSRAM XBO 450 W OFR

Description

Spectrolamps Short Arc Xenon Lamps offer-
• High luminance
• Ozone free quartz
• 99.99% purity xenon gas
• High grade electrode materials
• Continuous visible range spectrum
• Hot restart
• High stability arc
• Latest production techniques
• Buying with confidence at the best prices

Warning: Xenon short arc lamps emit high levels of ultraviolet radiation, are under high pressure and require high ignition voltage . Xenon lamps get very hot during operation and remain hot after operation for some time. Correct protective gear should be worn at all times when operating and handling lamps. Avoid direct exposure to lamp as they can cause serious burns and eye injury. Extreme care must be taken when handling these lamps and be only operated in properly designed enclosed equipment.
